Rancilio / Promac Steam Pipe Assembly Ø 10mm – 3/8F Nut, 210mm

3/8F Nut Connection 10mm Steam Pipe 210mm Length

Item Number: 620644

Steam Arm Silvia: Single Hole Tip
  • Steam Arm Silvia: Single Hole Tip
  • Steam Arm Silvia: Single Hole Tip
  • Steam Arm Silvia: Single Hole Tip
  • Steam Arm Silvia: Single Hole Tip
RRP $63.95 Save $4.05 Your Price $59.90
4 payments of $14.98
ZipMoney Logo
Own it now, pay later

Dispatch in 3-7 days

Categories: Spare Parts
Shipping Estimate

Need Help? Contact Us

Description

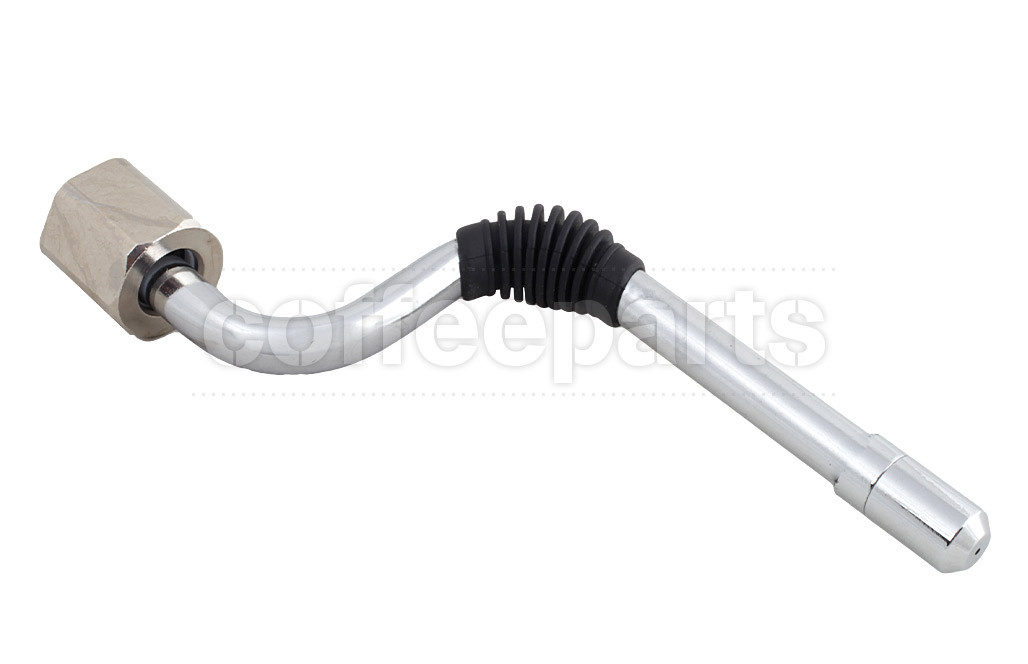

Steam Arm Assembly Ø 10mm – 3/8F Nut, 210mm

This replacement steam pipe assembly is designed for selected Rancilio and Promac espresso machines, including compatible Rancilio Silvia configurations. It features a 10 mm diameter stainless-steel pipe, 210 mm length and integrated 3/8" female nut connection.

A worn, damaged or leaking steam pipe can affect steam delivery and milk-texturing performance. Replacing the affected assembly helps restore the correct steam path and provides a secure connection at the steam valve.

Coffee Parts lists this assembly under cross-reference 620644-X and associates it with manufacturer part numbers 10049063 and 10049139. Compatibility can vary between machine versions, so confirm the original part number and steam-valve arrangement before ordering. Installation by a qualified technician is recommended where internal steam components require servicing.

Compatible Part Numbers

Also known by the following manufacturer part numbers

10049063Promac 10049063Rancilio 10049139Rancilio

To fit machines from these brands

Promac Rancilio (home) Rancilio (commercial)

Browse all Hoses on CoffeeParts.

Specifications:

  • Brand: Coffee Parts
  • Manufacturer Part Number: 10049063
  • Alternative Part Number: 10049139
  • Cross-Reference: 620644-X
  • Product Type: Steam Pipe Assembly
  • Material: Stainless steel with chrome-plated finish
  • Pipe Diameter: 10 mm
  • Length: 210 mm
  • Connection Size: 3/8" female nut
  • Application: Replacement steam pipe for espresso machine steam-valve assemblies
  • Machine Compatibility: Selected Rancilio and Promac machines, including compatible Rancilio Silvia configurations
  • Installation: Confirm original part number and steam-valve configuration before ordering; qualified technician installation recommended

    Features:

  • Stainless-steel steam pipe assembly
  • 10 mm pipe diameter
  • 210 mm pipe length
  • 3/8" female nut connection
  • Suitable for selected Rancilio and Promac machines
  • Listed for compatible Rancilio Silvia steam-valve assemblies
  • Cross-references manufacturer numbers 10049063 and 10049139

    Coffee Parts Thoughts:

    A practical replacement when a compatible Rancilio or Promac steam pipe is worn, damaged or leaking. The 10 mm diameter and 3/8" female connection should be checked against the existing assembly before ordering, with part number confirmation providing the safest compatibility check.
