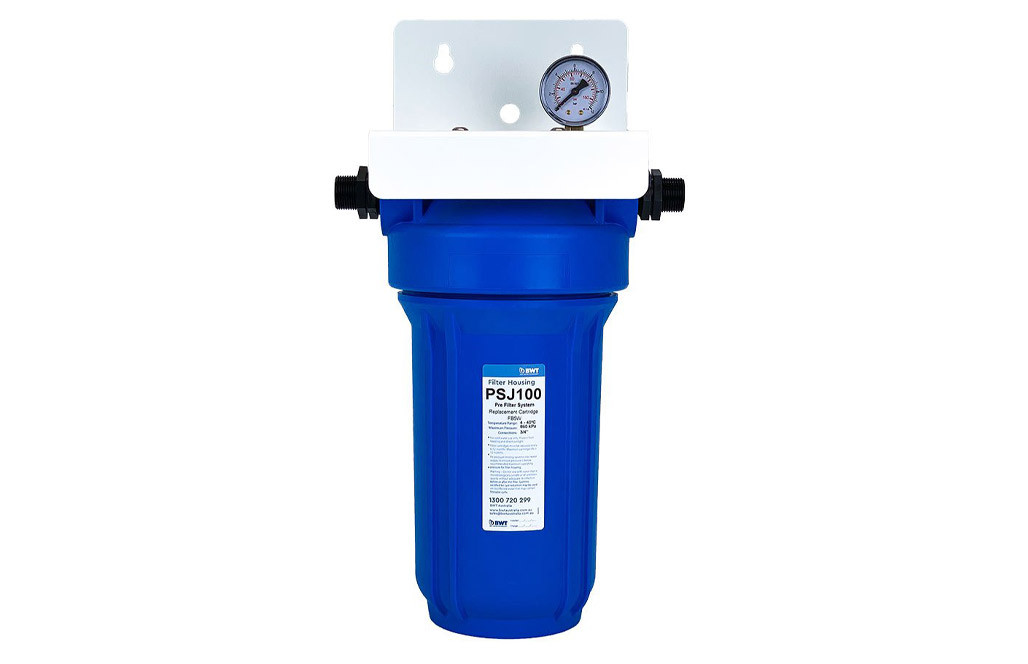

BWT PSJ100 Prefilter System 4.5" × 10"

BWT PSJ100 Prefilter System 4.5" × 10"

5-Micron Filtration RO Membrane Protection Pressure Gauge Included

Item Number: w-bwt-PSJ100-RB

Your Price $411

4 payments of $102.75

Own it now, pay later

Dispatch in 3-7 days

Categories: Water Filters Replacement Filters BWT

Shipping Estimate

Need Help? Contact Us

Description

BWT PSJ100 Prefilter System 4.5" × 10"

The BWT PSJ100 is a high-capacity commercial prefilter system designed for installation before reverse osmosis equipment or as a standalone filtration system.

Its included BWT FB5W Fibron cartridge provides dual-purpose sediment and carbon filtration, reducing dirt, rust, sediment, chlorine and unwanted tastes and odours from the incoming water supply.

Removing chlorine and sediment before the water reaches a reverse osmosis system helps protect the membrane from degradation, blockages and premature failure.

The PSJ100 features a downstream pressure gauge for monitoring water pressure and identifying when the cartridge is becoming restricted. An integrated vent button allows trapped air and pressure to be released during cartridge replacement.

A mounting bracket and housing sump spanner are included for convenient installation and servicing.

What's in the Box?

BWT PSJ100 prefilter housing

BWT FB5W 5-micron Fibron filter cartridge

Mounting bracket

Downstream pressure gauge

Housing sump spanner

Specifications

Brand: BWT
Model: PSJ100
Manufacturer Number: B15DN2AE
System Configuration: Single, one-high housing
Cartridge Size: 4.5" × 10"
Included Cartridge: BWT FB5W Fibron
Filtration Rating: 5 micron nominal
Maximum Flow Rate: Less than 30L per minute
Operating Pressure: 100–860kPa
Operating Temperature: 5–40°C
Inlet Connection: 3/4" BSP male
Outlet Connection: 3/4" BSP male
Recommended Cartridge Replacement: Every 12 months or when the downstream pressure falls below 50kPa during demand
Typical Cartridge Capacity: Approximately 30,000–40,000L, depending on incoming water quality
Height: 48cm
Width: 22cm
Weight: 5kg
Feed Water: Potable water only
Replacement Cartridge: BWT FB5W
Features
- Commercial 4.5" × 10" jumbo prefilter system
- Includes BWT FB5W Fibron filter cartridge
- Nominal 5-micron filtration
- Reduces sediment, dirt and rust
- Reduces chlorine, unwanted tastes and odours
- Helps protect reverse osmosis membranes
- Downstream pressure gauge
- Vent button for pressure and air release
- High flow rate of up to 30L per minute
- Suitable for commercial and whole-house applications
- Mounting bracket included
- Housing sump spanner included
- Can be used before a BWT bestaqua ROC system
  Coffee Parts Thoughts:

  The PSJ100 is an important first stage when installing a BWT bestaqua reverse osmosis system. Its FB5W cartridge removes sediment and chlorine before they reach the RO membrane, helping maintain water flow and extend membrane life.
  The downstream pressure gauge makes maintenance easier by showing when the cartridge is becoming restricted. Cartridge life will vary according to incoming water quality and usage, so it should be replaced earlier if pressure or flow begins to drop.

Specifications

Brand	BWT
Model	B15DN2AE
Suits	RO
Warranty	1 Year
Returns	30 Days Change of Mind (If Unused)
Filter System	Head Only
Filter Connection	3/8 inch bsp
Flush Port	No
Shut-off Valve	Yes
