BWT PSJ200 RB Prefilter System 4.5" × 20"

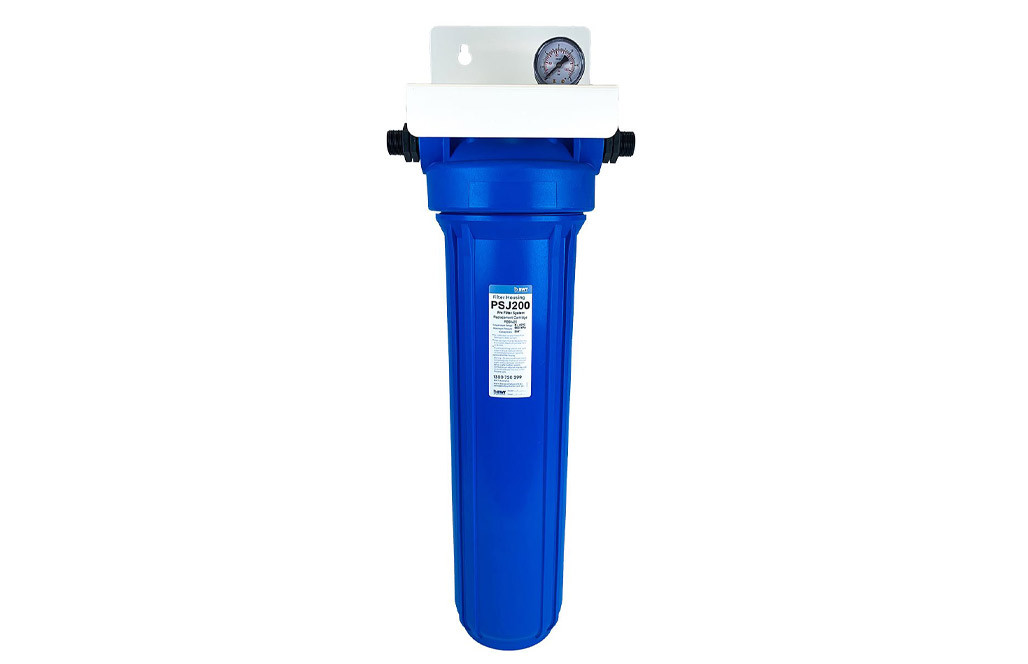

BWT PSJ200 RB Prefilter System 4.5" × 20"

High-Capacity Filtration RO Membrane Protection Pressure Gauge Included

Item Number: w-bwt-PSJ200-RB

Your Price $540

4 payments of $135

Own it now, pay later

Dispatch in 3-7 days

Categories: Water Filters Replacement Filters BWT

Shipping Estimate

Need Help? Contact Us

Description

BWT PSJ200 RB Prefilter System 4.5" × 20"

The BWT PSJ200 is a high-capacity commercial prefilter system designed for installation before reverse osmosis equipment or as a standalone water-filtration system.

Its larger 4.5" × 20" housing is fitted with a BWT FB5W20 Fibron cartridge, providing dual-purpose sediment and carbon filtration. The cartridge reduces dirt, rust, sediment, chlorine and unwanted tastes and odours from the incoming water supply.

Removing sediment and chlorine before the water reaches a reverse osmosis system helps protect its membrane from degradation, blockages and premature failure.

A downstream pressure gauge allows water pressure and cartridge restriction to be monitored during operation. The housing also features a vent button for releasing trapped air and pressure during servicing.

The system includes a mounting bracket and housing sump spanner for straightforward installation and cartridge replacement.

What's in the Box?

BWT PSJ200 prefilter housing

BWT FB5W20 5-micron Fibron filter cartridge

Mounting bracket

Downstream pressure gauge

Housing sump spanner

Specifications

Brand: BWT
Model: PSJ200
Manufacturer Number: D15DN2AF
System Configuration: Single, two-high housing
Cartridge Size: 4.5" × 20"
Included Cartridge: BWT FB5W20 Fibron
Filtration Rating: 5 micron nominal
Maximum Flow Rate: Less than 30L per minute
Operating Pressure: 100–860kPa
Operating Temperature: 5–40°C I
nlet Connection: 3/4" BSP male
Outlet Connection: 3/4" BSP male
Recommended Cartridge Replacement: Every 12 months or when downstream pressure falls below 50kPa during demand
Typical Cartridge Capacity: Approximately 50,000–60,000L, depending on incoming water quality
Height: 72cm
Width: 22cm
Weight: 7kg
Feed Water: Potable water only
Replacement Cartridge: BWT FB5W20
Features
- High-capacity 4.5" × 20" prefilter system
- Includes BWT FB5W20 Fibron cartridge
- Nominal 5-micron filtration
- Reduces sediment, dirt and rust
- Reduces chlorine, unwanted tastes and odours
- Helps protect reverse osmosis membranes
- Downstream pressure gauge
- Vent button for pressure and air release
- Flow rate of up to 30L per minute
- Suitable for higher-volume commercial installations
- Mounting bracket included
- Housing sump spanner included
- Can be used before BWT bestaqua ROC systems
  Coffee Parts Thoughts:

  The PSJ200 offers the same sediment and chlorine protection as the PSJ100, but its larger 20-inch cartridge provides greater capacity for busy commercial sites.
  It is a strong choice for protecting BWT reverse osmosis systems where water consumption is high or where incoming water contains more sediment and chlorine. The downstream pressure gauge also makes it easier to identify declining flow before it affects the connected RO equipment.

Specifications

Brand	BWT
Model	D15DN2AF
Suits	RO
Warranty	1 Year
Returns	30 Days Change of Mind (If Unused)
Filter System	Head Only
Filter Connection	3/8 inch bsp
Flush Port	No
Shut-off Valve	Yes
