La Marzocco

La Marzocco Double Scale Pressure Gauge 0–3 / 0–18 Bar – L280R

Dual Pressure Scales Capillary Included Linea Classic Fit

Item Number: lm-l280r

Double Scale Pressure Gauge NEW
  • Double Scale Pressure Gauge NEW
  • Double Scale Pressure Gauge NEW
  • Double Scale Pressure Gauge NEW
  • Double Scale Pressure Gauge NEW
Your Price $157.45
4 payments of $39.36
ZipMoney Logo
Own it now, pay later

Dispatch in 3-7 days

Categories: Spare Parts
Shipping Estimate

Need Help? Contact Us

Description

Double Scale Pressure Gauge NEW

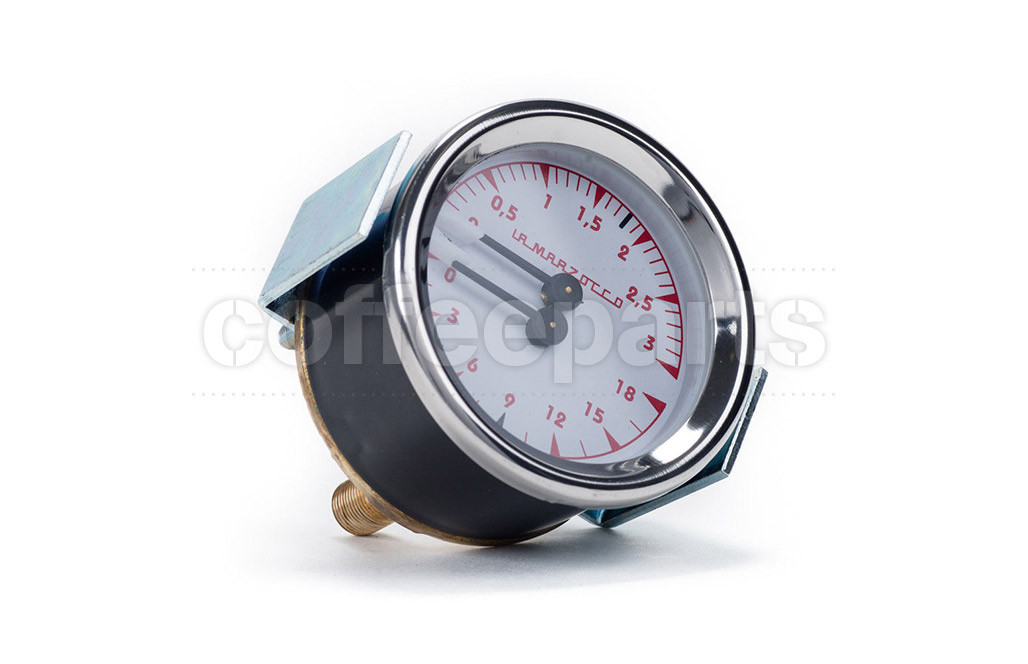

The La Marzocco L280R is a double-scale pressure gauge that lets the operator monitor both steam-boiler and pump pressure from a single instrument. It is used on selected Linea Classic and FB70 control-panel assemblies.

The gauge provides a 0–3 bar scale for boiler pressure and a 0–18 bar scale for pump pressure, giving technicians and operators a clear reference when checking machine operation or diagnosing pressure-related issues.

La Marzocco lists L280.R complete with capillary. Replacement may be required if the existing gauge becomes damaged, unreadable or no longer responds correctly to pressure changes.

Check L280.R against the machine parts diagram before ordering. As the gauge connects to pressurised hydraulic circuits, installation and testing by a qualified espresso machine technician is recommended.

What’s in the Box?:

1 × Double Scale Pressure Gauge with Capillary

Specifications:

  • Brand: La Marzocco
  • Manufacturer Part Number: L280.R
  • Product Type: Double-scale pressure gauge
  • Boiler Pressure Range: 0–3 bar
  • Pump Pressure Range: 0–18 bar
  • Gauge Body Diameter: 60 mm
  • Bezel Diameter: 65 mm
  • Connection Size: 1/8" male
  • Application: Boiler and pump pressure monitoring
  • Machine Compatibility: Selected La Marzocco Linea Classic and FB70 configurations
  • Installation: Qualified technician recommended

    Features:

  • Double-scale pressure gauge
  • 0–3 bar boiler pressure range
  • 0–18 bar pump pressure range
  • Supplied with capillary
  • 60 mm gauge body
  • 65 mm bezel diameter
  • 1/8" male connections
  • Documented for Linea Classic and FB70

    Coffee Parts Thoughts:

    A practical replacement gauge that puts both boiler and pump pressure readings in one place. Matching the L280.R part number is important, as La Marzocco has used different gauge arrangements across its machine ranges. Have the capillary connections checked for leaks after installation.
