La Marzocco

La Marzocco Temperature Probe Kit - L53001R

Coffee Boiler Probe PID Temperature Control Genuine La Marzocco

Item Number: lm-l53001r

Temperature probe kit
  • Temperature probe kit
Your Price $239
4 payments of $59.75
ZipMoney Logo
Own it now, pay later

In stock

Categories: Spare Parts
Shipping Estimate

Need Help? Contact Us

Description

La Marzocco Temperature Probe Kit - L53001R

The La Marzocco L530.01.R Temperature Probe Kit is a genuine replacement assembly designed to monitor the coffee-boiler temperature in compatible Linea Classic and FB70 commercial espresso machines.

The electronic probe provides temperature information to the machine’s PID control system, allowing it to regulate the coffee-boiler heating circuit and maintain stable brewing temperatures. A faulty or damaged probe may contribute to inaccurate temperature readings, heating faults or inconsistent boiler performance.

The probe measures approximately 3mm in diameter by 126mm long and features a two-wire cable approximately 1500mm long. The complete kit also includes the required probe fitting, sealing washers and connector cable for installation.

This kit is listed for selected Linea Classic V5.5 and FB70 V5.5–V5.6 machines. Compatibility should be confirmed using the machine’s model, serial number and official parts diagram before ordering.

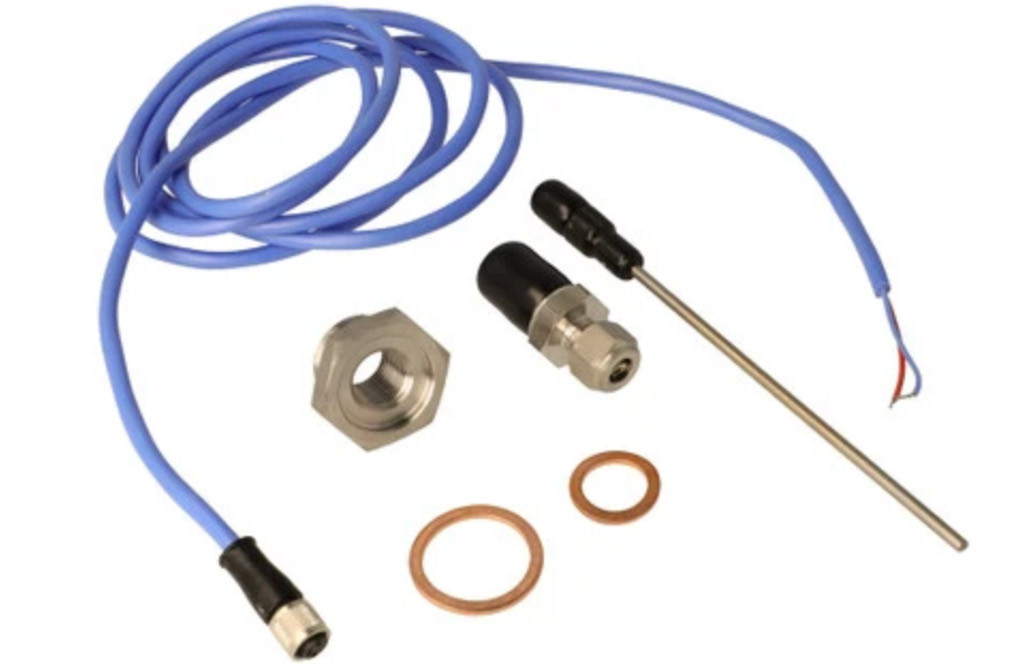

What’s in the Box?:

  • 1 × La Marzocco temperature probe
  • 1 × Temperature-probe connector cable
  • 1 × A.2.007 probe fitting
  • 1 × L100/1A copper washer – 13.5 × 19 × 1.5mm
  • 1 × L260/1A copper washer – 21 × 27 × 1.5mm

    Specifications:

  • Brand: La Marzocco
  • Manufacturer Part Number: L530.01.R
  • Coffee Parts SKU: L53001R
  • Part Type: Temperature probe kit
  • Application: Coffee-boiler temperature monitoring
  • Probe Diameter: Approximately 3mm
  • Probe Length: Approximately 126mm
  • Cable Type: Two wire
  • Cable Length: Approximately 1500mm
  • Probe Connection: 1/4-inch fitting with 1/2-inch male to 1/4-inch female adaptor
  • Compatibility: Selected La Marzocco Linea Classic V5.5 and FB70 V5.5–V5.6 machines

    Features:

  • Genuine La Marzocco replacement kit
  • Monitors coffee-boiler temperature
  • Supports accurate PID temperature regulation
  • Complete probe, fitting and sealing hardware
  • Two-wire electrical connection
  • Suitable for selected Linea Classic and FB70 machines
  • Designed for commercial espresso-machine applications

    Coffee Parts Thoughts: Coffee Parts Thoughts:

    A complete service kit for replacing the coffee-boiler temperature probe rather than attempting to reuse worn fittings or compressed copper sealing washers.

    When diagnosing temperature instability, the technician should also inspect the probe wiring, PID controller connections, heating element and solid-state relay. La Marzocco documentation identifies the L530.01 probe as part of the Linea and FB70 PID coffee-boiler control system.

    Installation involves electrical and pressurised boiler components and should be completed by a suitably qualified espresso-machine technician. The machine must be disconnected from power, fully cooled and depressurised before servicing.
