La Marzocco

La Marzocco 1GR Preheater 157 mm

157 mm Preheater La Marzocco Service Part Confirmed 1-Group Fit

Item Number: lm-t104601

Your Price $159.45
4 payments of $39.86
ZipMoney Logo
Own it now, pay later

Dispatch in 3-7 days

Categories: Spare Parts
Shipping Estimate

Need Help? Contact Us

Description

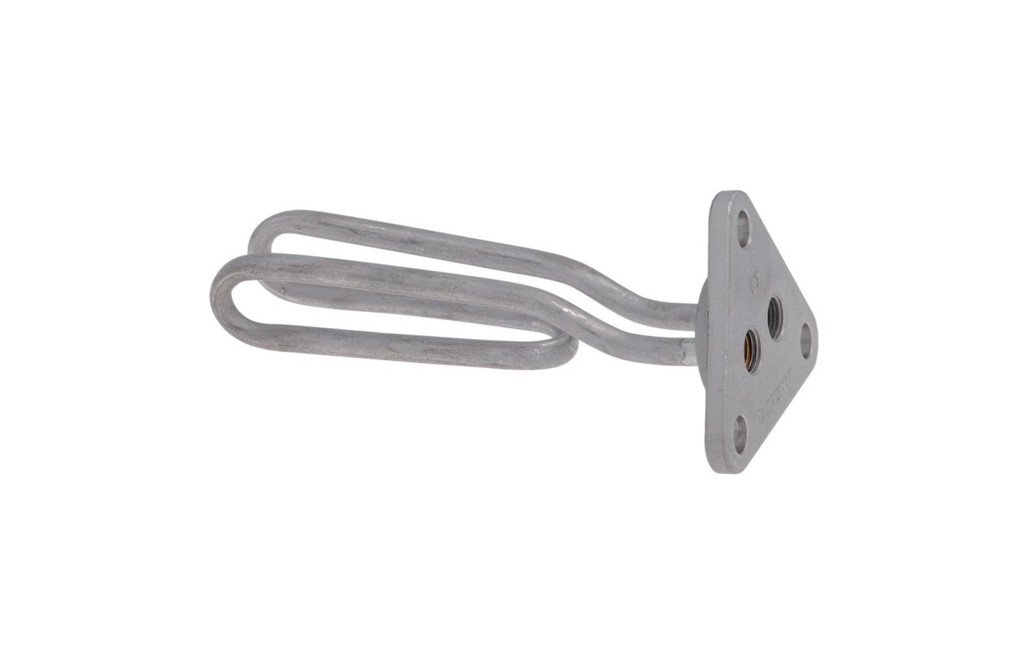

La Marzocco 1GR Preheater 157 mm

The La Marzocco 1GR Preheater is an internal service component used within the pre-heating circuit of selected single-group espresso machines. Measuring 157 mm in the La Marzocco parts catalogue, it forms part of the system that preheats incoming water before it reaches the coffee boiler.

Replacing a damaged or unserviceable preheater helps restore the intended water path and thermal operation of the machine. It is an internal hydraulic component and should be installed as part of an appropriate machine service or repair.

La Marzocco parts documentation confirms this preheater in the GS3 AV and Mechanical Paddle, Linea Mini, Linea Mini R and Leva 1GR assemblies. Compatibility should still be checked against the machine’s current parts diagram before ordering.

The associated F.2.014.01 O-ring is shown separately in La Marzocco diagrams and is not listed as part of this item. Professional technician installation is recommended.

What’s in the Box?:

1 × La Marzocco 1GR Preheater 157 mm

Specifications:

  • Brand: La Marzocco
  • Manufacturer Part Number: T.1.046.01; T.1.046 in current La Marzocco parts diagrams
  • Product Type: Preheater
  • Length: 157 mm
  • Application: Espresso machine pre-heating circuit
  • Machine Compatibility: GS3 AV, GS3 Mechanical Paddle, Linea Mini, Linea Mini R, Leva 1GR
  • Associated Seal: F.2.014.01 O-ring, listed separately
  • Installation: Professional technician installation recommended

    Features:

  • La Marzocco 1-group preheater replacement
  • 157 mm catalogue length
  • Internal pre-heating circuit component
  • Confirmed for selected GS3 models
  • Confirmed for Linea Mini and Linea Mini R
  • Confirmed for Leva 1GR
  • Associated F.2.014.01 O-ring listed separately
  • Qualified technician installation recommended

    Coffee Parts Thoughts:

    This is a machine-specific internal service part, so matching the reference against the correct La Marzocco parts diagram matters. The 157 mm preheater is used across several single-group platforms, but the model name alone should not replace a part-number check. It is also worth confirming whether the separately listed F.2.014.01 O-ring is required during the repair.
