La Marzocco GS3 MP Mechanical Paddle Assembly – Up to S/N 7603

Click on the item number or use the list below to check pricing and buy online

La Marzocco GS3 MP Mechanical Paddle Assembly – Up to S/N 7603

1 — H101001 · O-Ring MP - Paddle Valve body 3 — H101101 · O-ring 9, 25x1,78 5 — B201503 · Pump sail for S/Steel paddle 7 — H1018 · OR 109 - 2-110) IN EPDM - 70 SHA 24 — SA60001K · La Marzocco GS3 MP Paddle Rebuild Kit – Old Style 6 — H1019 · OR 113 -(2-111) IN EPDM - 70 SHA 4 — B201403 · Spacer-Paddle Oring - high polished 25 — B201203 · not currently available 2 — B2012R · MP - body valve + S/Steel  locknut 8 — T110101 · Paddle water charge pipe valve with s/steel fitting 10 — TL30P01 · Tube-Internal for Paddle 9 — F2003 · Gigleur in Ruby for Cover 0.6mm 23 — F4010 · MP - Teflon Oring 11 — A5003 · La Marzocco MP Paddle Valve Shaft – Old Style 15 — F3020 · Mechanical paddle mounting bracket 14 — H1016 · La Marzocco O-Ring 137 DIA INT 29.75 - 3.53 13 — F4009 · MP -Teflon Ring for paddle Diam. 38 16 — A4003 · Brass nut hex 27 H5 paddle 18 — RONDELLA6X12 · Stainless steel washer 6X12 1.5 thick 19 — A1014 · Cafetto Polar Cold Brewer Cleaner (500g) 20 — F4008 · MP - Teflon Ring For Paddle Diam 45 21 — A5005 · Actuator for paddle micro 22 — DADO5MINOX · S/Steel Nut 5 1 — H101001 · O-Ring MP - Paddle Valve body 2 — B2012R · MP - body valve + S/Steel  locknut 3 — H101101 · O-ring 9, 25x1,78 4 — B201403 · Spacer-Paddle Oring - high polished 5 — B201503 · Pump sail for S/Steel paddle 6 — H1019 · OR 113 -(2-111) IN EPDM - 70 SHA 7 — H1018 · OR 109 - 2-110) IN EPDM - 70 SHA 8 — T110101 · Paddle water charge pipe valve with s/steel fitting 9 — F2003 · Gigleur in Ruby for Cover 0.6mm 10 — TL30P01 · Tube-Internal for Paddle 11 — A5003 · La Marzocco MP Paddle Valve Shaft – Old Style 13 — F4009 · MP -Teflon Ring for paddle Diam. 38 14 — H1016 · La Marzocco O-Ring 137 DIA INT 29.75 - 3.53 15 — F3020 · Mechanical paddle mounting bracket 16 — A4003 · Brass nut hex 27 H5 paddle 18 — RONDELLA6X12 · Stainless steel washer 6X12 1.5 thick 19 — A1014 · Cafetto Polar Cold Brewer Cleaner (500g) 20 — F4008 · MP - Teflon Ring For Paddle Diam 45 21 — A5005 · Actuator for paddle micro 22 — DADO5MINOX · S/Steel Nut 5 23 — F4010 · MP - Teflon Oring 24 — SA60001K · La Marzocco GS3 MP Paddle Rebuild Kit – Old Style 25 — B201203 · not currently available

La Marzocco GS3 MP Mechanical Paddle Assembly – Up to S/N 7603

Pages

Why Buy with Coffee Parts?

  • Australia's largest online
    coffee related supplier
  • Same day despatch for
    orders placed before 3pm aest
  • Registered customers
    earn points with every order
  • Top brands at best prices

Out of stock


Name
Item #
Price
Qty

Item # a-1014
RRP $25.95 Save $2.30 Was $25.95 Sale Price $23.65

In stock

Item # lm-a4003
Your Price $28.45
Item # lm-a5003
Your Price $235.45

In stock

Item # lm-a5005
Your Price $18.95
Item # lm-b2012r
Your Price $204.45
Item # lm-b201403
Your Price $55.45
Item # lm-b201503
Your Price $53.95
Item # lm-f2003
Your Price $16.95
Item # lm-f3020
Your Price $108.45
Item # lm-f4008
Your Price $63.95
Item # lm-f4009
Your Price $63.95
Item # lm-f4010
Your Price $48.45
Item # lm-h101001
Your Price $13.95

In stock

Item # lm-h101101
Your Price $14.95

In stock

Item # lm-h1016
Your Price $6.95

In stock

Item # lm-h1018
Your Price $13.95
Item # lm-h1019
Your Price $9.95
Item # lm-rondella6x12
Your Price $6.95

In stock

Item # lm-sa60001k
Your Price $399.45
Item # lm-t110101
Your Price $28.45
Item # lm-tl30p01
Your Price $56.95
Item # lm-dado5minox
Your Price $9.95
Description

La Marzocco GS3 MP Mechanical Paddle Assembly – Up to S/N 7603

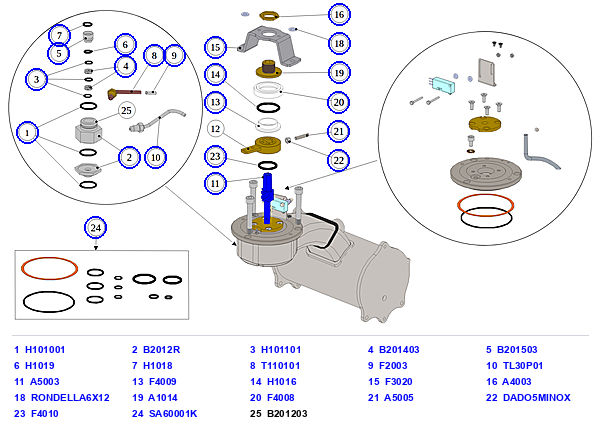

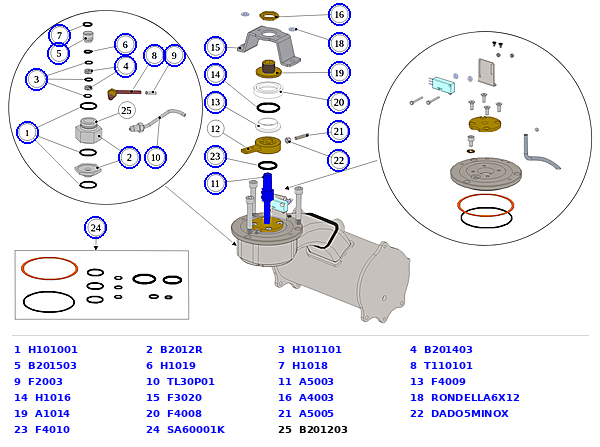

Exploded parts diagram for the La Marzocco GS3 Mechanical Paddle Assembly - Old Mp.
