Steam Tips for Coffee Machine Steam Arms, Back to Silky Milk
Blank, two, three and four hole nozzles in M10×1, 1/8", M8.5×0.75 and M6 threads.
TL;DR: A steam tip is the nozzle on the end of a steam wand. Thread and hole count decide fit, like the M6 three-hole tip for La Pavoni Europiccola.
A worn or blocked steam nozzle shows up in the jug first: weak steam, big bubbles, milk that won't spin. This range of coffee machine steam tips covers the replacement nozzles we carry for commercial and home espresso machines, in blank, two, three and four hole patterns and four thread types. Find your thread, choose your hole count, and your steam wand is back to texturing properly.
What the holes on a steam tip do
A coffee machine steam wand is only as good as the tip on the end of it. The holes split steam into jets: more holes, or wider ones, push more steam into the jug, heating milk faster but leaving less time to add air. Fewer holes deliver less steam power and volume, which makes them easier to control while you are learning to texture milk.
Hole size matters as much as hole count. Across this range, hole diameters sit between 1.1mm and 1.7mm, so two four-hole tips can steam quite differently. The machine matters too. Thermoblock and single-boiler machines often produce less steam pressure, so a tip that feels right on a dual boiler machine or heat exchange machine can feel slow on one of them.
Why steam tips wear out
Milk residue dries inside the holes and partly blocks them, and daily frothing wears the openings. The signs show up in the jug: weaker steam, uneven jets and microfoam that won't come together. Wiping the wand with a damp barista cloth and purging it over the drip tray straight after every jug keeps the holes clear for longer. Once that stops helping, a new nozzle restores proper steam delivery.
How to choose coffee machine steam tips
1. Match the thread first
Hole count is a preference; thread is not. Most nozzles here list their thread in the product name, and these are the four you'll see:

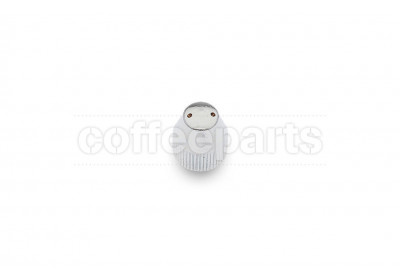

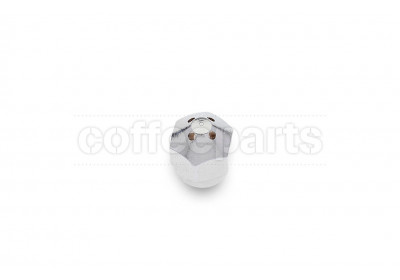

Female M10×1: listed for a wide spread of brands including Astoria, Bezzera, Cimbali, Expobar, Faema, La San Marco Beverage Systems, Rancilio and Wega. Start with the four-hole M10×1 nozzle (SKU 614723).
Female 1/8" BSP: used on nozzles listed for La Spaziale, Cimbali, Nuova Simonelli, Victoria Arduino, ECM, Sanremo and Conti machines.
Male M8.5×0.75: threads into the arm on machines from ECM, Expobar, Nuova Simonelli, Rancilio, Rocket Espresso, Sanremo and others.

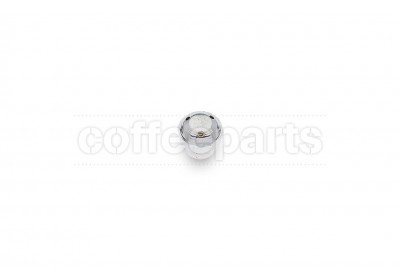

Female M6: the small thread for La Pavoni lever machines. If your La Pavoni steam wand needs a new tip, the M6 three-hole nozzle (SKU 701828) is listed for the Europiccola, La Grande Bellezza, Professional, Romantica and Stradivari.
2. Choose your hole count
Rule of thumb: 300ml to 400ml jugs work best with a two-hole tip, and jugs of 600ml or more with four holes. Three holes sit in between. Makers vary hole size and position, so treat this as a starting point; personal preference and some trial and error settle the rest.

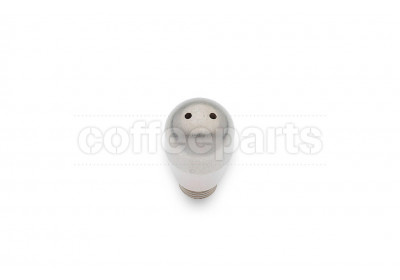

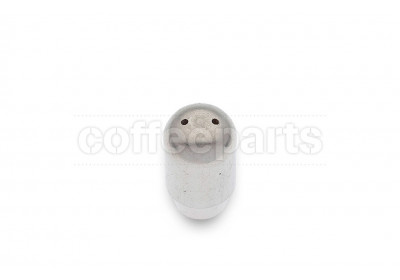

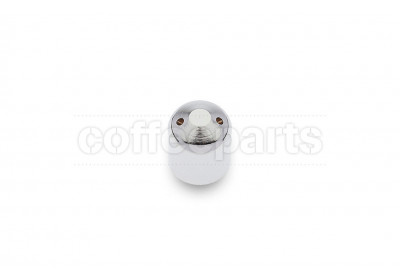

Two-hole: 1.5mm or 1.7mm holes, for smaller jugs and more control.

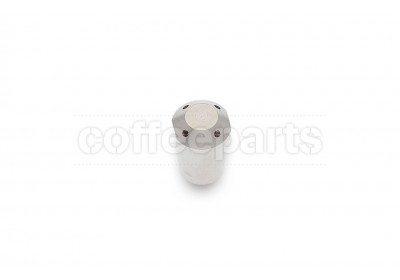

Three-hole: 1.1mm holes on the La Pavoni M6 tip, plus 1/8" and M10×1 versions for commercial machines.

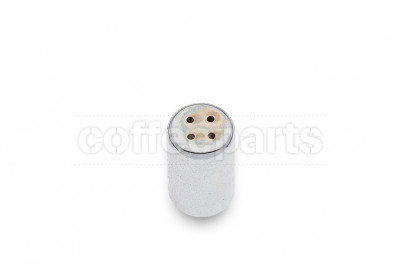

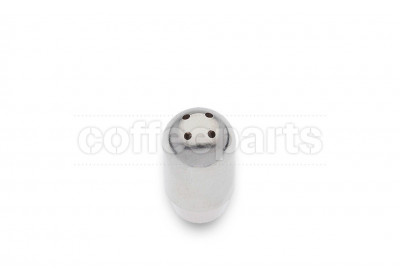

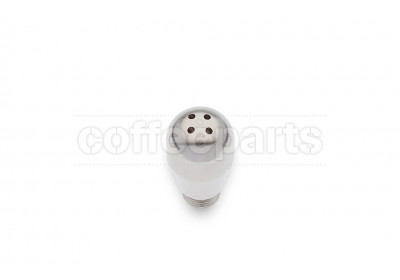

Four-hole: holes between 1.2mm and 1.7mm. A 4 hole steam wand tip moves the most steam, which suits larger jugs.
Blank or blind: tips with no holes, in a 10mm female thread.
3. Check the body size
Dimensions are listed as diameter by length, for example Ø12×16mm against Ø12×28.5mm. Measure your old tip and pick the closest match so the replacement sits on the wand the way the original did.
Looking for a Breville tip?
None of the nozzles on this page list Breville fitment. For a Breville steam tip or a barista express steam wand tip, check our Barista Express accessories or the wider Breville range.
A new tip works best with a jug sized to match it: a two-hole tip with a smaller milk jug, a four-hole tip with a 600ml or larger one. A milk thermometer helps while you learn how quickly the new tip heats. Steam tips wear alongside other service parts, so it's worth checking your group head seals and shower screens at the same time.
Steam tips are one of those parts nobody thinks about until the milk goes wrong. My view: if your texture has slipped and your technique hasn't changed, look at the tip before anything else. Holes block, holes wear, and it's a small part to swap. We've been supplying, servicing and repairing espresso machines since 1999, and the jug rule still holds as a starting point: two holes for small jugs, four for big ones. Then experiment until it feels right in your hands.
— Pedro Lara
Frequently Asked Questions
Should I use a two or four hole steam tip?
+
It mostly depends on jug size. As a rule of thumb, 300ml to 400ml jugs suit a two-hole tip and 600ml or larger jugs suit four holes. Hole size and position vary between makers, so personal preference and a bit of trial and error decide the rest.
Is a 3 hole wand tip better for beginners?
+
Not necessarily. Fewer holes deliver less steam power and volume, which gives a learner more time to add air and settle the milk into a spin. A three-hole tip sits between two and four holes, so it suits people who want a little more speed without giving up much control.
How do I know which thread my coffee machine nozzle uses?
+
Start with your machine brand: each nozzle lists the brands it fits. The threads in this range are female M10×1, female 1/8", male M8.5×0.75 and female M6. A male tip threads into the steam arm, while a female tip screws over it. If in doubt, compare your old tip's thread and body size with the dimensions in the product name.
Will these fit a Breville Barista Express?
+
None of the nozzles on this page list Breville fitment. They are listed for brands such as Rancilio, Cimbali, ECM, Nuova Simonelli and La Pavoni. For Breville machines, check our Breville accessories range instead.
Why is my milk frothing nozzle giving big bubbles?
+
Usually the tip is sitting too close to the surface. Keep it just under the milk while adding air, then raise the jug slightly so the tip sits a little deeper for heating, without touching the bottom. If your technique hasn't changed but the texture has, check the holes: milk residue partly blocks them over time, and uneven jets make microfoam harder to build.
Do you stock a replacement for the La Pavoni Europiccola?
+
Yes. SKU 701828 is a chromed female nozzle with an M6 thread and three 1.1mm holes, listed for the La Pavoni Europiccola, La Grande Bellezza, Professional, Romantica and Stradivari.
What fits a Rancilio Silvia steam arm?
+
If you're after a Rancilio silvia steam tip, several nozzles here list Rancilio fitment, including the four-hole M10×1 nozzle (SKU 700528) and the male M8.5×0.75 nozzles. The listings name the brand rather than the Silvia specifically, so compare the thread and body size of your current tip before ordering.
