E61 Portafilter Gasket 73.7×57.7×8mm

8mm Group Seal Internal Cut Design Made in Italy

Item Number: 516528-n

Group head gasket/seal 73x57x8mm
  • Group head gasket/seal 73x57x8mm
RRP $9.95 Save $4.05 Your Price $5.90
4 payments of $1.48
ZipMoney Logo
Own it now, pay later
  • Buy 10 for $3.96 each and save 33%
  • Buy 20 for $3.47 each and save 42%

In stock

Shipping Estimate

Need Help? Contact Us

Description

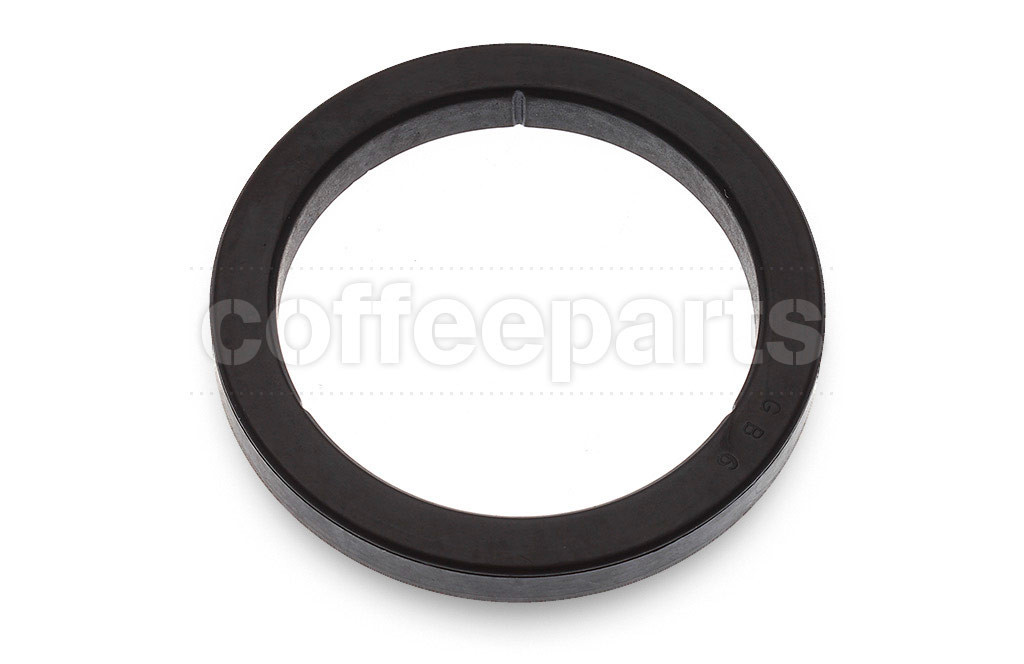

E61 Portafilter Gasket 73.7×57.7×8mm

A worn group gasket is one of the most common causes of water leaking around the portafilter during extraction. This E61 portafilter gasket measures 73.7 × 57.7 × 8 mm and provides the seal between the portafilter and group head on selected compatible espresso machines.

The gasket features internal cuts designed to assist with even compression and sealing around the portafilter rim. Replacing a worn, compressed or damaged seal can help restore a secure portafilter fit and reduce leakage from around the group during brewing.

This 8 mm version is used across selected E61 and compatible group assemblies from a range of manufacturers. Similar-looking group gaskets are available in different diameters and thicknesses, so check the dimensions of the existing gasket or machine parts diagram before ordering.

Compatible Part Numbers

Also known by the following manufacturer part numbers

01652809Futurmat-Ariete01652809Italcrem01652809Mairali01652809Visacrem10502110Sanremo1110600015Grimac1186632LF1186720Azkoyen1186721LF1186894LF12225Astoria CMA12227Astoria CMA1786060LF190003Magister2700Conti361008Pavoni361014Pavoni402-199-000Cimbali402-199-010Cimbali402199000Faema402199010Casadio402199010Faema4701-016-528Cimbali4701-016528Faema4701016528Faema525.104Fast Ricambi525.258Fast Ricambi528.070Fast Ricambi528.610Fast Ricambi528.970Fast Ricambi5493039Bezzera75000081Expobar8W12227De Vecchi GiuseppeA10040AstraA1200007Fiorenzato C.s.AT5493039RenekaC449900229EcmD12749Z-NB85BK007BezzeraD12749Z-NB85BK007GrimacD12749Z-NB85BK007LelitD12749Z-NB85BK007Quick MillF015GrimacGUARSOTVibiemmeIS351030IsomacW10321WegaWY12227WegaWY12228Wega

To fit machines from these brands

Astoria CMAAstraAzkoyenBezzeraCasadioCimbaliCimeContiEcmExpobarFaemaFiorenzato C.s.Fiorenzato CSFuturmat-ArieteGrimacIsomacItalcremLelitMagisterMairaliPavoniQuick MillRenekaSanremoVibiemmeVisacremWega

Specifications:

  • Product Type: Portafilter / Group Head Gasket
  • Colour: Black
  • Dimensions: 73.7 × 57.7 × 8 mm
  • Outside Diameter: 73.7 mm
  • Inside Diameter: 57.7 mm
  • Thickness: 8 mm
  • Gasket Design: Internal cuts
  • Country of Manufacture: Italy
  • Application: Sealing the portafilter against the espresso machine group head
  • Machine Compatibility: Selected Astoria CMA, Astra, Azkoyen, Bezzera, Casadio, Cimbali, Cime, Conti, ECM, Expobar, Faema, Fiorenzato C.S., Futurmat-Ariete, Grimac, Isomac, Italcrem, Lelit, Magister, Mairali, La Pavoni, Quick Mill, Reneka, Sanremo, Vibiemme, Visacrem and Wega machines
  • Installation: Confirm gasket dimensions and machine compatibility before fitting

    Features:

  • 73.7 × 57.7 × 8 mm dimensions
  • Internal-cut gasket design
  • 8 mm gasket thickness
  • Black finish
  • Made in Italy
  • Replacement portafilter-to-group seal
  • Suitable for selected compatible espresso machines
  • Designed to help restore a secure group seal

    What’s in the Box?:

    1 × E61 Portafilter Gasket 73.7 × 57.7 × 8 mm

    Coffee Parts Thoughts:

    A small service part that makes a noticeable difference when an ageing group seal starts leaking or the portafilter no longer locks in as it should. The internal-cut design assists with compression around the portafilter sealing surface.

    Pay close attention to gasket thickness when ordering. An 8 mm gasket can look almost identical to an 8.5 mm or 9 mm version, but that difference affects portafilter lock-in position and sealing. Match the dimensions to the existing gasket or machine parts diagram.

  • Specifications
    Brand Coffee Parts
    Warranty 1 Year
    Returns 14 Days Change of Mind (If Unused)
    Material Rubber
    Colour Black
