Mini R

La Marzocco Mini R Hydraulic Assembly 3

Click on the item number or use the list below to check pricing and buy online

La Marzocco Mini R Hydraulic Assembly 3

1 — E600303 · La Marzocco Heating Element 1200w 220v Tri. Flange | 1 — E6040 · not currently available | 1 — E604101 · not currently available 13 — F201401 · O-Ring GS3 4150 VITON 2 — L1001A · Copper Washer, Vacuum Breaker 14 — DADO3M · M3 brass nut | 14 — I4016 · Dado W1/8 H3 CH6 Ottone · not currently available 2 — L1001A · Copper Washer, Vacuum Breaker 12 — 1037 · La Marzocco SMA Vacuum Breaker Rebuild Kit – LM1037 | 12 — B202901 · Valve Vacuum Breaker SMA G1/4 S/S FKM 4 — L037301 · Drain Fitting 1/4'' tea treatment 2 — L1001A · Copper Washer, Vacuum Breaker 2 — L1001A · Copper Washer, Vacuum Breaker 3 — LA052 · Water Level Probe 11 — E5002 · La Marzocco GS3 Safety Thermostat 140°C 250V – E.5.002 5 — RONDDENT8 · La Marzocco Zinc Washer 8mm 10 — F9002 · Bracket for L276/E5002 thermostat 6 — I1025 · Nut M8X3mm brass 9 — I1151 · Screw M3X4 Phillips ROUND-PAN S/S A2 2 — L1001A · Copper Washer, Vacuum Breaker 8 — E3030R · Kit Ntc Temperature Probe 7 — F7043 · not currently available 1 — E600303 · La Marzocco Heating Element 1200w 220v Tri. Flange 1 — E6040 · not currently available 1 — E604101 · not currently available 2 — L1001A · Copper Washer, Vacuum Breaker 3 — LA052 · Water Level Probe 4 — L037301 · Drain Fitting 1/4'' tea treatment 5 — RONDDENT8 · La Marzocco Zinc Washer 8mm 6 — I1025 · Nut M8X3mm brass 7 — F7043 · not currently available 8 — E3030R · Kit Ntc Temperature Probe 9 — I1151 · Screw M3X4 Phillips ROUND-PAN S/S A2 10 — F9002 · Bracket for L276/E5002 thermostat 11 — E5002 · La Marzocco GS3 Safety Thermostat 140°C 250V – E.5.002 12 — 1037 · La Marzocco SMA Vacuum Breaker Rebuild Kit – LM1037 12 — B202901 · Valve Vacuum Breaker SMA G1/4 S/S FKM 13 — F201401 · O-Ring GS3 4150 VITON 14 — DADO3M · M3 brass nut 14 — I4016 · Dado W1/8 H3 CH6 Ottone · not currently available

Out of stock


Name
Item #
Price
Qty

Item # lm-lm1037
Your Price $9.90
Item # lm-b202901
Your Price $112

In stock

Item # lm-dado3m
Your Price $5.95

In stock

Item # lm-e5002
Your Price $29.95
Item # lm-e600303
Your Price $189
Item # lm-f9002
Your Price $6.95

In stock

Item # lm-i1025
Your Price $9.95
Item # lm-i1151
Your Price $9.90
Item # lm-l037301
Your Price $12.95
Item # lm-l100-1a
Your Price $11.95

In stock

Item # lm-la052
Your Price $42.95
Item # lm-ronddent8
Your Price $9.90
Item # lm-e3030r
Your Price $253
Item # lm-i4016
Your Price $9.90

Out of stock!

Item # lm-f2014
Your Price $11.95

In stock

Description

La Marzocco Mini R Hydraulic Assembly 3

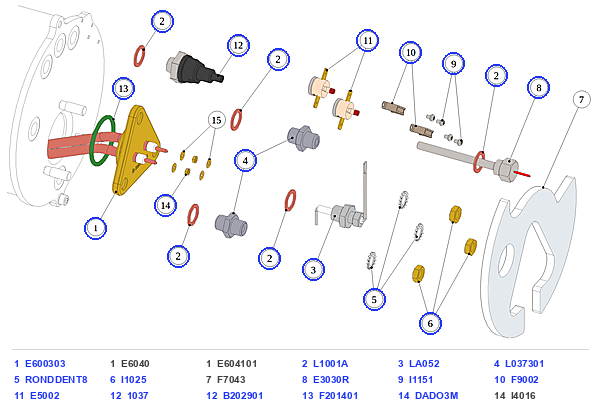

Exploded parts diagram for the La Marzocco Mini R Hydraulic Assembly 3.
