Shot Brewer

La Marzocco Shot Brewer Electrical System Assembly - MP

Click on the item number or use the list below to check pricing and buy online

La Marzocco Shot Brewer Electrical System Assembly - MP

3 — I1006 · M4x8 TBL slotted S/Steel screw 2 — C1046SB · not currently available 1 — E1011 · PID controller Fuji 5 — C1039 · Bracket Pressure Gauge Gs3 · not currently available 4 — E3022 · PRESS.GAUGE 0-18 White W/CAPILLARY GS3 6 — F2021 · not currently available 7 — L2851 · Brew Switch (White with Cup Symbol) 10 — DADO6M · Zinc nut M6 9 — RONDDENT6 · Tooth Lock Washer 6x10,5x1,5 Galvanized · not currently available 8 — VITE6X20 · La Marzocco 6X20 Screw Hex · not currently available 11 — E7001C · Capacitor 25mf 110v · not currently available | 11 — E7008C · Capacitor 30uf 100v · not currently available 15 — E2018 · Grommet For Water Inlet Tube 12 — C1055SB · not currently available 13 — RONDDENT8 · La Marzocco Zinc Washer 8mm 14 — I1040 · not currently available 22 — E401001R · Solid State Relay 25amp with | 22 — E4029R · Solid State Relay 50amp 240V with | 22 — E4035R · 25A 480V relay with thermal compound 16 — VITE3X25ES · Screw M3x25mm Hex Head S/S A2 · not currently available 17 — E2032 · not currently available | 17 — E2057 · not currently available 15 — E2018 · Grommet For Water Inlet Tube 18 — VITE4X10 · Screw M4x10 Cheese Brass · not currently available 19 — RONDDENT4 · Zinc Washer Mm .4 20 — C1054SB · not currently available 21 — DADOINOXM3 · Nut M3 H2 Wr5,5 S/S A2 1 — E1011 · PID controller Fuji 2 — C1046SB · not currently available 3 — I1006 · M4x8 TBL slotted S/Steel screw 4 — E3022 · PRESS.GAUGE 0-18 White W/CAPILLARY GS3 5 — C1039 · Bracket Pressure Gauge Gs3 · not currently available 6 — F2021 · not currently available 7 — L2851 · Brew Switch (White with Cup Symbol) 8 — VITE6X20 · La Marzocco 6X20 Screw Hex · not currently available 9 — RONDDENT6 · Tooth Lock Washer 6x10,5x1,5 Galvanized · not currently available 10 — DADO6M · Zinc nut M6 11 — E7001C · Capacitor 25mf 110v · not currently available 11 — E7008C · Capacitor 30uf 100v · not currently available 12 — C1055SB · not currently available 13 — RONDDENT8 · La Marzocco Zinc Washer 8mm 14 — I1040 · not currently available 15 — E2018 · Grommet For Water Inlet Tube 16 — VITE3X25ES · Screw M3x25mm Hex Head S/S A2 · not currently available 17 — E2032 · not currently available 17 — E2057 · not currently available 18 — VITE4X10 · Screw M4x10 Cheese Brass · not currently available 19 — RONDDENT4 · Zinc Washer Mm .4 20 — C1054SB · not currently available 21 — DADOINOXM3 · Nut M3 H2 Wr5,5 S/S A2 22 — E401001R · Solid State Relay 25amp with 22 — E4029R · Solid State Relay 50amp 240V with 22 — E4035R · 25A 480V relay with thermal compound

Out of stock


Name
Item #
Price
Qty

Item # lm-dado6m
Your Price $6.45

In stock

Item # lm-dadoinoxm3
Your Price $9.95
Item # lm-e1011
Your Price $764.45
Item # lm-e2018
Your Price $9.95
Item # lm-e401001r
Your Price $134.45
Item # lm-e4029r
Your Price $199.45
Item # lm-e4035r
Your Price $170.45
Item # lm-i1006
Your Price $6.95

In stock

Item # lm-l2851
Your Price $9.95
Item # lm-ronddent4
Your Price $4.45

In stock

Item # lm-ronddent8
Your Price $9.95
Item # lm-vite6x20
Your Price $9.95

Out of stock!

Item # lm-e3022
Your Price $71.45
Description

La Marzocco Shot Brewer Electrical System Assembly - MP

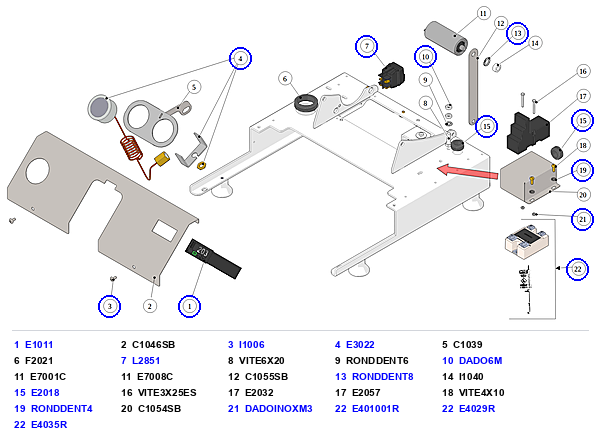

Exploded parts diagram for the La Marzocco Shot Brewer Electrical System Assembly - Mp.
