Shot Brewer

La Marzocco Shot Brewer Mechanical Paddle Assembly - Mp 2

Click on the item number or use the list below to check pricing and buy online

La Marzocco Shot Brewer Mechanical Paddle Assembly - Mp 2

4 — DADO3M · M3 brass nut 2 — RONDINOXGS3 · s/s Washer GS3 For Elect Box 1 — E2039 · Microswitch and lug kit 5 — VITE3X10 · Screw M3x10mm Phillips Round-Pan Stainless Steel A2 · not currently available 6 — C1067 · Micro Support Paddle Switch 7 — I3004 · Distancer 3,5x8x2.5 2 — RONDINOXGS3 · s/s Washer GS3 For Elect Box 8 — I1055 · Screw M3X20 Hex Head S/S A2 · not currently available 19 — F4013 · Bush lever conical paddle valve 17 — I1091 · Washer 14, 2x30x2 s/s 18 — I5004 · Belleville spring 17 — I1091 · Washer 14, 2x30x2 s/s 16 — I6005 · Washer 14, 1x30x2 PTFE 15 — F8005 · Lever conical paddle valve · not currently available 12 — A5005 · Actuator for paddle micro 13 — DADO5MINOX · Nut M5 H4 Wr8 S/S A2 14 — I1016 · S/Steel  M5 Grub screw 17 — I1091 · Washer 14, 2x30x2 s/s 11 — A5055 · Conical valve shaft 10 — H1018 · OR 109 - 2-110) IN EPDM - 70 SHA 9 — H1006 · O-ring Adaptor 20 — L1202 · Bleed Screw 21 — RONDELLA6X12 · Stainless steel washer 6X12 1.5 thick 22 — F3020 · Mechanical paddle mounting bracket 23 — I1005 · 5x10 socket head S/Steel Bolt 24 — I1039 · S/Steel washer 5x10x1 25 — C1336 · Extension lever paddle conical GS3 · not currently available 32 — E300901 · not currently available 34 — H1021 · La Marzocco O-Ring 103 – H1021 31 — L292R · Hose Holder Fitting GS3 1/8 Chrome 30 — F1022 · Cap bolt cover for paddle 29 — I1028 · Cap bolt paddle M5 33 — F1080 · Cap D8 Sheet Metal 1,6 Nylon Black · not currently available 28 — C2020 · La Marzocco Linea Bakelite Paddle Handle 27 — F1079 · Exposed Group Cover W/Pressure Gauge Gs3 · not currently available 26 — I1029 · Cap bolt paddle M5 23 — I1005 · 5x10 socket head S/Steel Bolt 1 — E2039 · Microswitch and lug kit 2 — RONDINOXGS3 · s/s Washer GS3 For Elect Box 4 — DADO3M · M3 brass nut 5 — VITE3X10 · Screw M3x10mm Phillips Round-Pan Stainless Steel A2 · not currently available 6 — C1067 · Micro Support Paddle Switch 7 — I3004 · Distancer 3,5x8x2.5 8 — I1055 · Screw M3X20 Hex Head S/S A2 · not currently available 9 — H1006 · O-ring Adaptor 10 — H1018 · OR 109 - 2-110) IN EPDM - 70 SHA 11 — A5055 · Conical valve shaft 12 — A5005 · Actuator for paddle micro 13 — DADO5MINOX · Nut M5 H4 Wr8 S/S A2 14 — I1016 · S/Steel  M5 Grub screw 15 — F8005 · Lever conical paddle valve · not currently available 16 — I6005 · Washer 14, 1x30x2 PTFE 17 — I1091 · Washer 14, 2x30x2 s/s 18 — I5004 · Belleville spring 19 — F4013 · Bush lever conical paddle valve 20 — L1202 · Bleed Screw 21 — RONDELLA6X12 · Stainless steel washer 6X12 1.5 thick 22 — F3020 · Mechanical paddle mounting bracket 23 — I1005 · 5x10 socket head S/Steel Bolt 24 — I1039 · S/Steel washer 5x10x1 25 — C1336 · Extension lever paddle conical GS3 · not currently available 26 — I1029 · Cap bolt paddle M5 27 — F1079 · Exposed Group Cover W/Pressure Gauge Gs3 · not currently available 28 — C2020 · La Marzocco Linea Bakelite Paddle Handle 29 — I1028 · Cap bolt paddle M5 30 — F1022 · Cap bolt cover for paddle 31 — L292R · Hose Holder Fitting GS3 1/8 Chrome 32 — E300901 · not currently available 33 — F1080 · Cap D8 Sheet Metal 1,6 Nylon Black · not currently available 34 — H1021 · La Marzocco O-Ring 103 – H1021

Out of stock


Name
Item #
Price
Qty

Item # lm-a5005
Your Price $18.95
Item # lm-a5055
Your Price $242
Item # lm-c1067
Your Price $41.95

In stock

Item # lm-c1336
Your Price $39.95

Out of stock!

Item # lm-c2020
Your Price $66.95

In stock

Item # lm-dado3m
Your Price $5.95

In stock

Item # lm-e2039
Your Price $84.95
Item # lm-f1022
Your Price $6.95

In stock

Item # lm-f3020
Your Price $108
Item # lm-f4013
Your Price $40.45
Item # lm-f8005
Your Price $256

Out of stock!

Item # lm-h1006
Your Price $4.95

In stock

Item # lm-h1018
Your Price $13.95
Item # lm-h1021
Your Price $5.95

In stock

Item # lm-i1005
Your Price $6.95

In stock

Item # lm-i1016
Your Price $6.95

In stock

Item # lm-i1028
Your Price $18.95
Item # lm-i1029
Your Price $17.95
Item # lm-i1039
Your Price $15.95
Item # lm-i1091
Your Price $26.95
Item # lm-i3004
Your Price $6.95

In stock

Item # lm-i5004
Your Price $7.95

In stock

Item # lm-i6005
Your Price $26.95
Item # lm-l1202
Your Price $6.95

In stock

Item # lm-l292r
Your Price $5.95

In stock

Item # lm-rondella6x12
Your Price $6.95

In stock

Item # lm-rondinoxgs3
Your Price $9.90
Description

La Marzocco Shot Brewer Mechanical Paddle Assembly - Mp 2

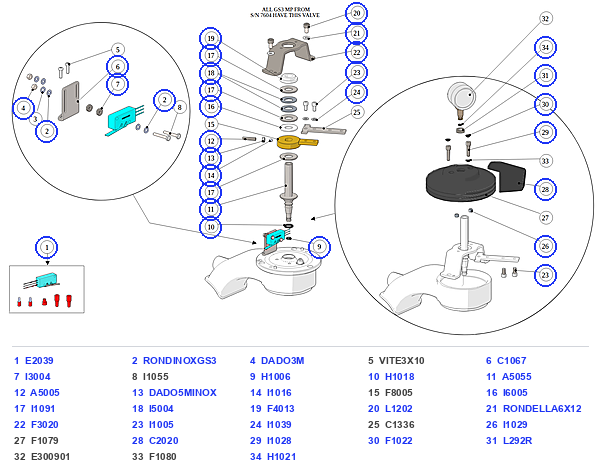

Exploded parts diagram for the La Marzocco Shot Brewer Mechanical Paddle Assembly - Mp 2.
